Good news!

Kakanuo’s new design---rigid strip light with touch dimmer is coming soon.
Your finger is the switch and dimmer. Interesting? Kakanuo makes it possible.
Just touch the aluminum material of the rigid strip anywhere, the light can be on/off, darken/lighter.

Rigid Strip Light‐Touch Dimmer

1, Name of commodity
Rigid Strip Light‐ Touch Dimmer

2, Product Specification
1), Production length and Power: 0.3M(3W)/0.5M(5W)/0.8M(8W)/1.0M(12W)

2), DC12V, SMD2835, PF>0.9, CRI>80, 80LM/W, Aluminum profile. Three years warranty.

3), Touch Dimmer Light

4), Color temperature: WW, NW and CW

3, Production Package

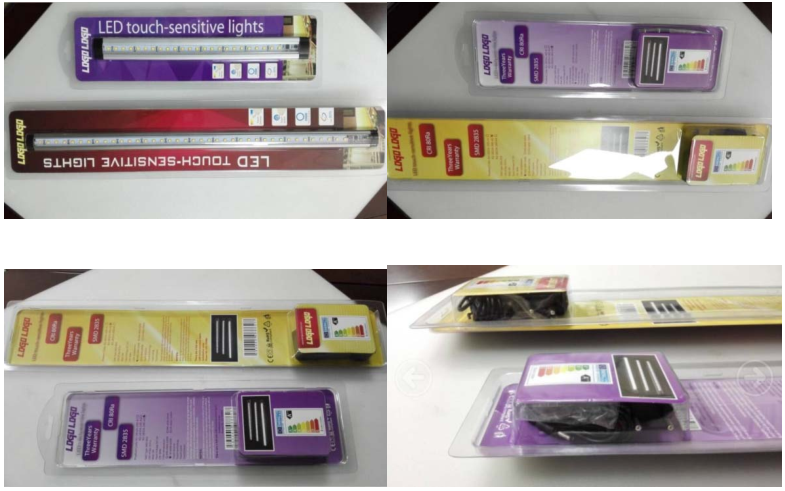

1), Blister package(PVC) with color artwork

2), Include Adapter (Input AC100-240V, Output DC12V), UL,TUV, GS, CE, ROHS, FCC, SAA certificate, with two clips


4, Rigid Strip operation method and changing model.
1), Rigid Strip operation method: Finger Touch

2) Changing model: four model
a，Little by Little be darken model
A1/B1/C1‐Adapter must connect rigid strip on IC end, OFF‐100%‐50%‐6%‐OFF.
b，Little by Little be be brighten model
A2/B2/C2‐Adapter must connect rigid strip on IC end, OFF‐6%‐50%‐100%‐OFF.
c，Single model
A3/B3/C3‐Adapter must connect rigid strip on IC end, OFF‐100%‐OFF
d，Not touch model
It is suitable for all kinds of rigid strips, but can’t be touched operation. Adapter must
connect rigid on another end.(No IC). OFF‐100%‐OFF.

5, Operation instruction
1). Little by Little be darken model
A1/B1/C1‐Adapter must connect rigid strip on IC end, OFF‐100%‐50%‐6%‐OFF.
a.The rigid strip will not shine when energized.
b.The rigid strip will have 100% luminance after you first touch aluminum profile.
C.The rigid strip will have 50% luminance after you second touch aluminum profile.
d. The rigid strip will have 6% luminance after you third touch aluminum profile.
e. The rigid strip will not shine after you fourth touch aluminum profile.

2). Little by Little be be brighten model
A2/B2/C2‐Adapter must connect rigid strip on IC end, OFF‐6%‐50%‐100%‐OFF.
a. The rigid strip will no shine when energized.
b. The rigid strip will have 6% luminance after you first touch aluminum profile.
c.The rigid strip will have 50% luminance after you second touch aluminum profile.
d. The rigid strip will have 100% luminance after you third touch aluminum profile
e. The rigid strip will not shine after you fourth touch aluminum profile.

3). Single model
A3/B3/C3‐Adapter must connect rigid strip on IC end, OFF‐100%‐OFF.
a. The rigid strip will not shine when energized.
b. The rigid strip will have 100% luminance after you first touch aluminum profile.
c. The rigid strip will not shine after you second touch aluminum profile.

4). Not touch model
It is suitable for all kinds of rigid strips, but can’t be touched operation. Adapter must
connect rigid on another end.(No IC). OFF‐100%‐OFF.
The rigid strip will be 100% luminance when energized.
